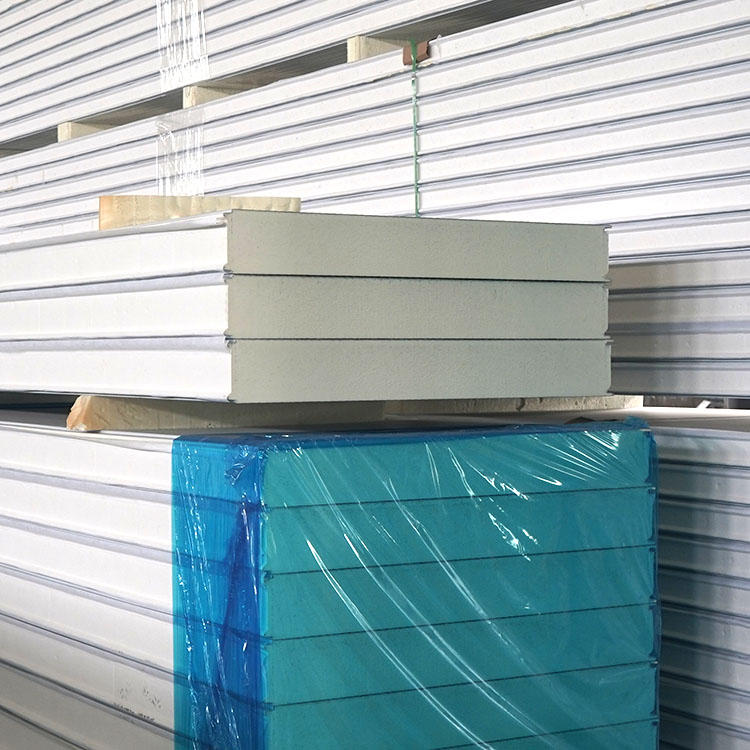

Cold storage panels from Henan Shunwei Energy Conservation Technology Co., Ltd. are designed to meet various cold storage needs. Here are their main specification parameters:




Thickness

Available in a range from 50mm to 200mm. The choice depends on the specific temperature requirements and the size of the cold storage. For smaller ones with less demanding conditions, thinner panels might be used, while larger and more temperature-sensitive cold storages usually need thicker ones for better insulation.

Dimensions

• Length: Customizable between 2m and 12m to fit different layouts.
• Width: Generally ranges from 600mm to 1200mm for convenient installation and structural stability.

Core Material

Made mainly of polyurethane foam with a low thermal conductivity coefficient (about 0.018 - 0.024 W/(m·K)). It provides excellent thermal insulation and has good compressive strength to maintain the panel's shape.

Surface Material

• Outer: Color-coated steel sheets, around 0.3mm - 0.8mm thick, which are corrosion-resistant and customizable in color.
• Inner: Food-grade and hygienic materials like stainless steel sheets or anti-mold/antibacterial coated panels, with a thickness of 0.2mm - 0.6mm.

Fire Resistance Rating

Some panels can reach a B1 fire resistance level, offering safety by slowing down fire spread in case of emergencies.
In summary, Henan Shunwei's cold storage panels have diverse specifications to suit different cold storage projects, ensuring reliable performance and quality. If you want to know more, feel free to contact us.
